LEAF VACUUM tecnical data
Model ALTO |
EP-500 (14 hp) |
EP-500 (18 hp) |
Length (mm) |
470 |
693 |
Width without hose
|
575 |
575 |
Height (mm) |
1040 |
1040 |
Weigh (kg) |
90 |
93 |
Turbine dimension (mm) |
D-450 |
D-450 |
L-120 |
L-120 |
|
Blades |
4 tk |
4 tk |
Shredder
|
1 tk |
1 tk |
Capacity (m3/min) |
180 |
180 |
Engine |
B&S 14hp |
B&S 18hp |
Hose dimension |
20 cm |
20 cm |
Hose length
|
5,0m |
5,0m |
Petrol |
Bensiin 95 |
Bensiin 95 |
Leaf vacuum/shredder ALTO EP-500
Leaf vacuum/shredder for public utility
companies to clean parks, lawns and roads from litter. You can collect grass,
leaves, branches, cones, acorns, plastic boxes and bottles, etc. on a trailer.
The vacuum can be easily connected to the cutting deck of a lawn tractor so
that when driving with the tractor it is possible to collect leaves, cut grass,

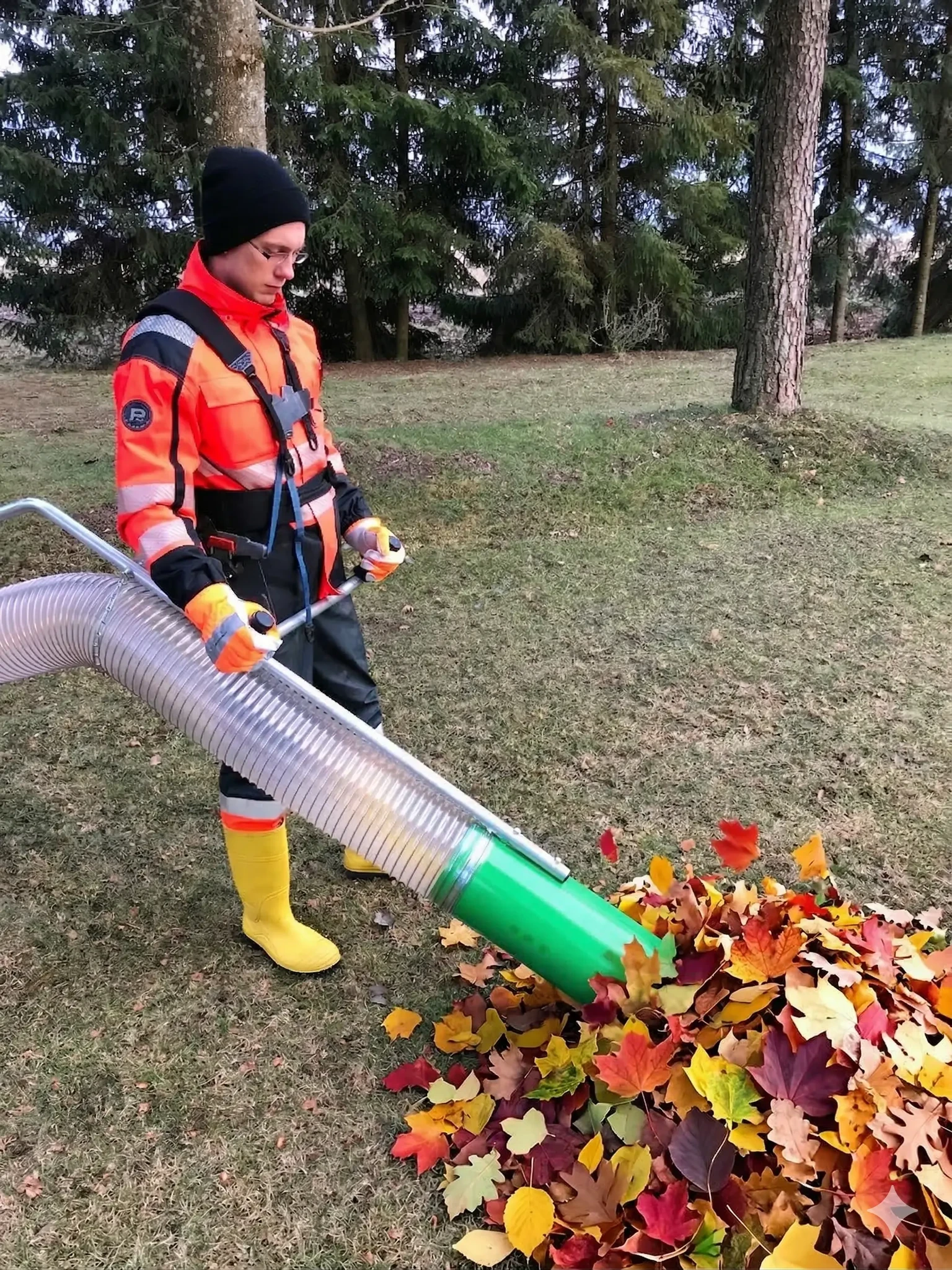

plastic containers, bottles and other litter. If you want to collect leaves
from a windrow or pile, you can attach a useful hand nozzle to the suction

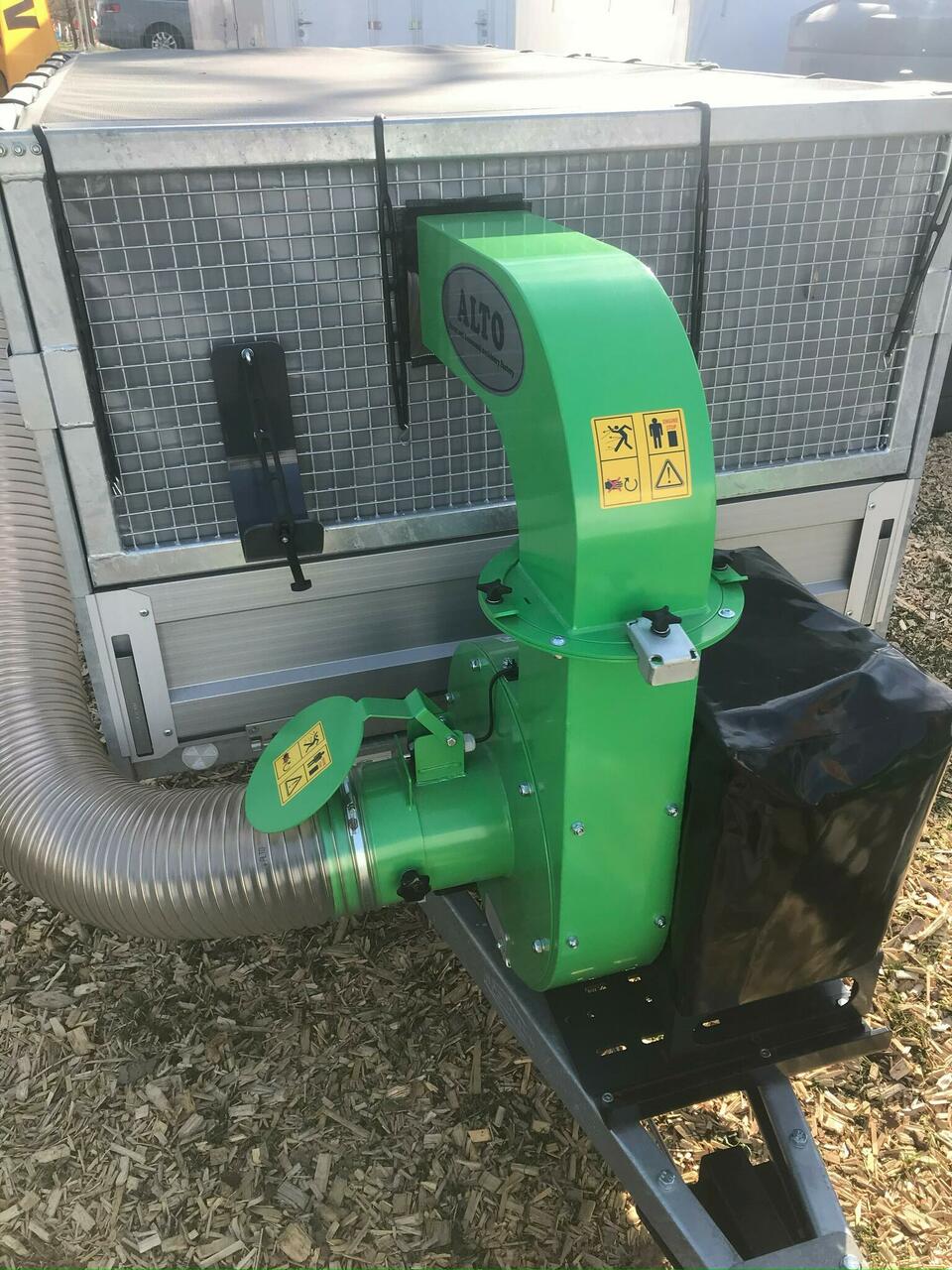

hose. The hand nozzle is equipped with a wheel to make it easier to use. Our leaf vacuum can be easily installed
on the drawbars of trailers. A special plate has been created for this purpose.
The leaf vacuum on the trailer drawbar and the hand nozzle with the suction
hose are attached to the side with supports. If necessary, it is possible to
order a longer suction hose and supports.
Accessories
–
Trailer with elevations on which it is
possible to mount a vacuum EP-500 (13h.p.), EP-500 (18h.p.).
–
Suction nozzle/brush ALTO H-120 which can be secured to the
front of a tractor and operated hydraulically.
Why
choose the ALTO EP-500 vacuum
–
Reliable.
–
No lubrication needed.
–
You can order the vacuum in accordance
with your needs and possibilities.
–
The vacuum has a separate shredder,
which makes it possible to fit up to three times as many leaves in the
trailer.
–
The leaf vacuum is fitted with safety
switches to ensure safe operation.
–
The turbine has a bearing inside that
can be replaced using a bolt connection.
–
The rotor is made of Hardox 450 steel.
