Vacuum Hose lift ALTO - VTH technical data:
Model | ALTO - VTH |
Lenght (transport position) | 2540 mm |
Width | 1250 mm |
Height (transport position) | 2350 mm |
Weight | 443 kg |
Working range along the tractor | 6,5 m |
Minimum performance for hydraulic system | 20 l/min |
Crane boom capacity | 145 kg |
Crane boom swing range | 3500 |
Vacuum Hose Lift ALTO - VTH

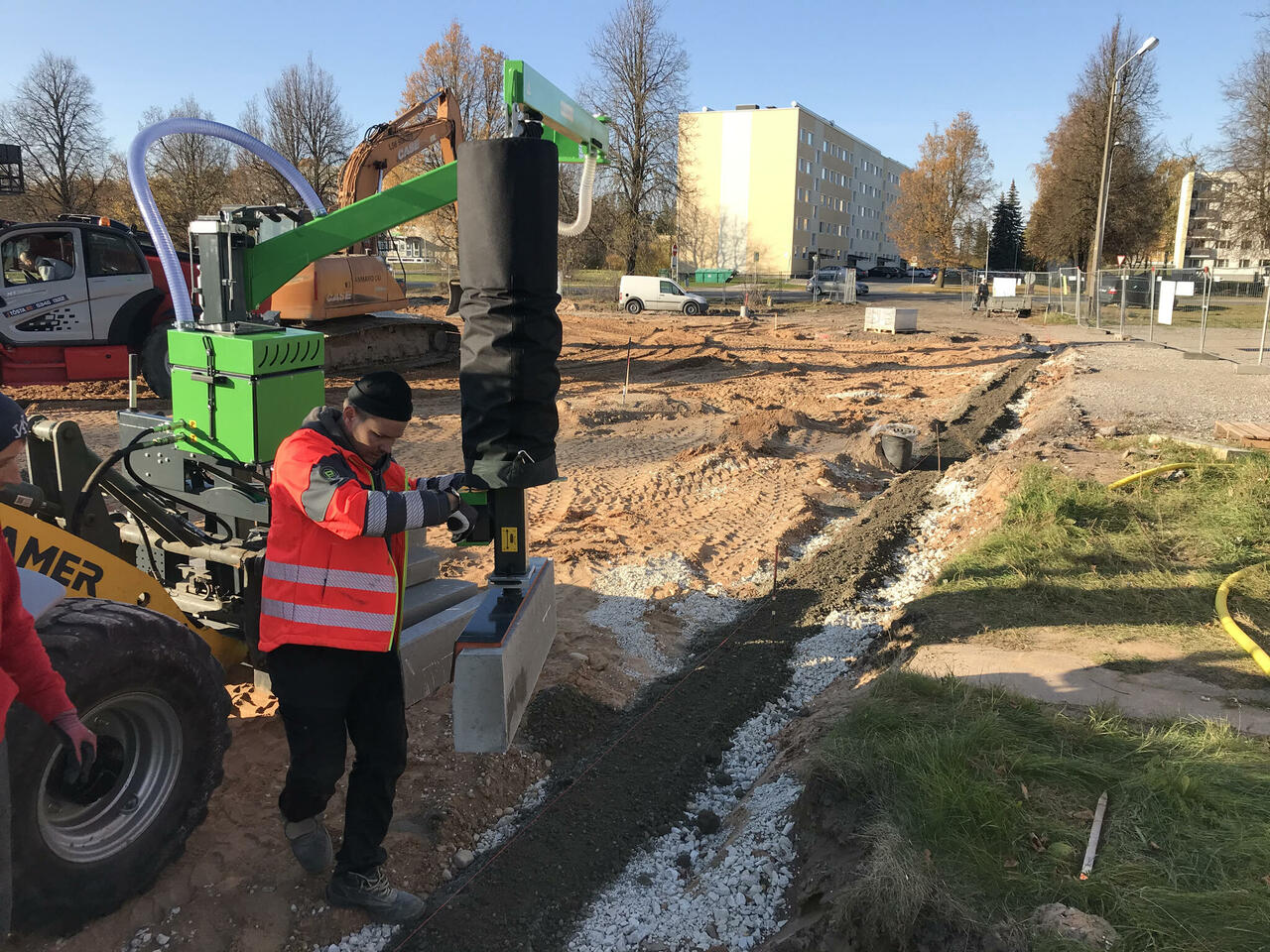

Ideal device for wheel loaders to install curbs on roads, squares and sidewalks. In addition, paving stones and tiles can be installed.
With the vacuum hose lift, it is easy, light and fast to install heavy concrete and granite curbs by one worker. There are vacuum pads for installing different stones and tiles. The vacuum pad is easy to change. For this, the device has a quick connection. In a day, one worker installs twice as many curbs with the device as two workers do manually.
The vacuum hose lift works from the loader's hydraulic system. The lift can be attached to the fork frame of a wide variety of loaders.
The lift's control lever is worker-friendly and ergonomic. The worker's back is straight and his feet are away from the stone being lifted.
In addition, the stone can be picked up from the other side of the base. You don't have to walk around the base as much.
The joystick also has a vacuum gauge. This is necessary so that the worker can monitor the operation and condition of the lift.
Moving the crane boom up, down, right and left is hydraulic.
The lift has been designed so that there are no supports protruding from the sides that could get caught by the worker. There is a slot on the frame for the joystick, which is easy to place during transport.
Advantages:
1. Saves time.
2. Saves money.
3. Easy to operate.
4. Makes work easier.
5. Accurate material placement.
6. Less space - transport and installation in one.
