Leaf collection trailer Böckmann DK-AL 3016/27
Leaf collection trailer with EU type approval: box capacity 6.6 m³, load capacity 1950 kg, three-way tipping, up to 90 km/h.
- 6,6 m³Volume
- 1950 kgLoad capacity
1-year warranty
The leaf trailer has EU type approval. The trailer can be driven at up to 90 km/h.
Technical description of the trailer
- Aluminium side panels 300 mm
- Steel elevations 1000 mm
- Steel sheet base
- Removable corner posts
- Trailer axle with brakes

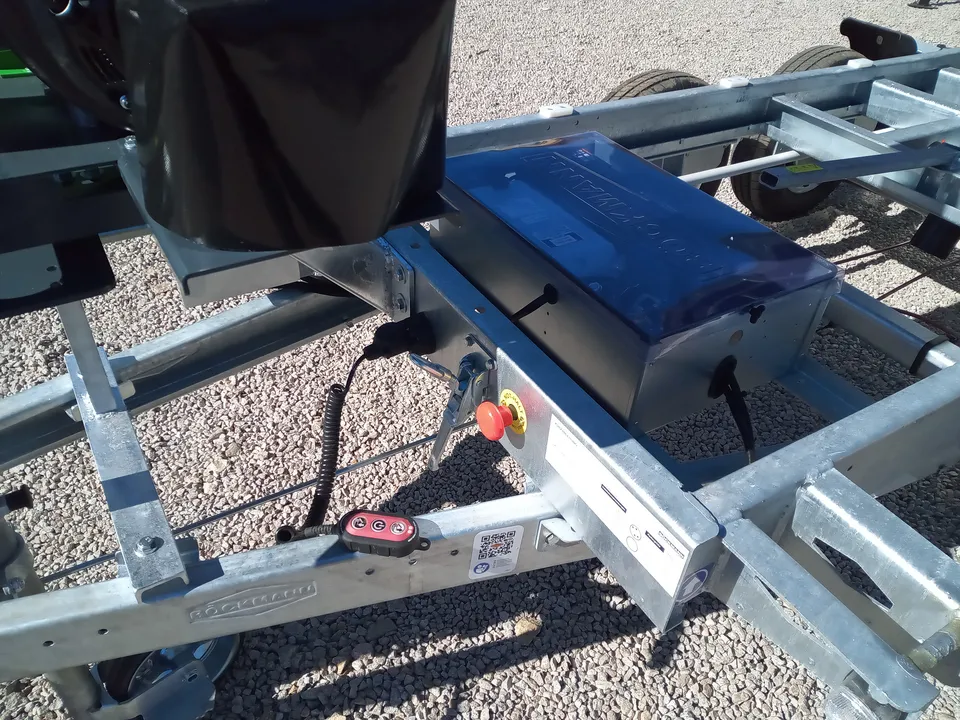

- Electric hydraulic pump with battery
- Manual hand pump
Optional equipment

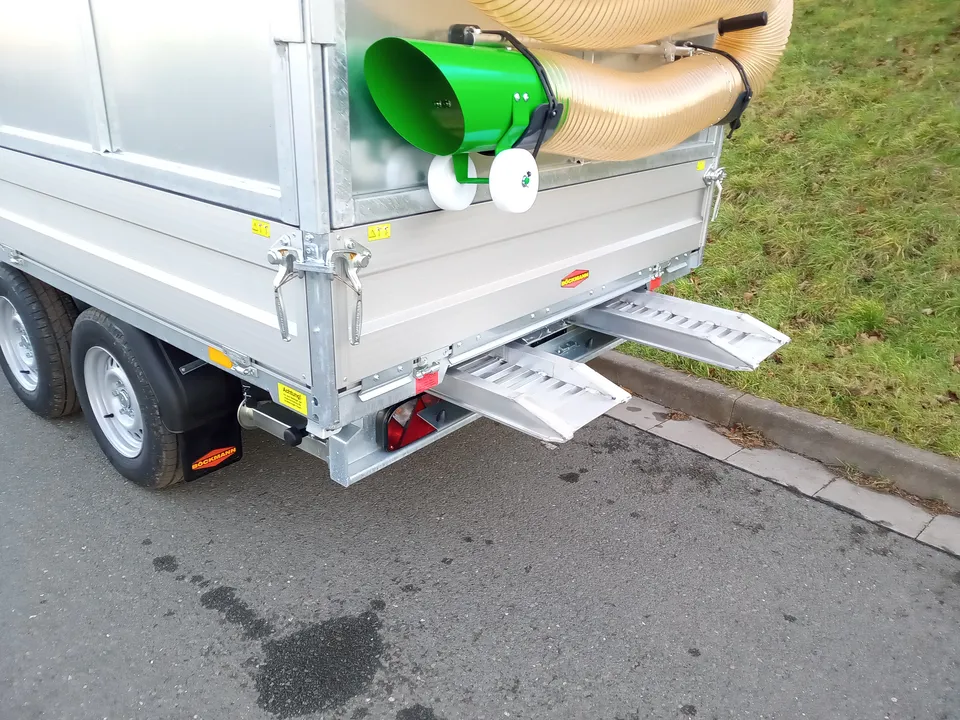

- Loading ramps, 2 pcs
All of our leaf vacuum models can be installed on the trailer. The leaf vacuums are attached to the base plate with four bolts. The base plate is attached to the trailer drawbar with a bolted joint. By removing the cover and the elevations, the trailer can be used for other purposes.
A leaf vacuum may only be installed on the front of the trailer drawbar by our dealers with our permission. We have design protection that is valid in the European Union. You can find our dealers on our website.
Technical data
- Box internal dimensions: length 3060 mm, width 1650 mm, height 1300 mm
- Box capacity 6.6 m³
- Gross weight 2700 kg
- Load capacity 1950 kg
- Loading height 750 mm
- Wheels 14"
- Tipping: three-way
- Tipping drive: electric and hand pump
- Drive connection: D-50 mm coupling head
