Leaf collection trailer UP220

The leaf trailer has an EU CoC type approval certificate. The trailer can be driven at up to 40 km/h.

Technical description of the trailer

• Steel side panels 400 mm
• Steel elevations 600 mm
• Steel sheet base
• Trailer axle without or with brakes
• Box lift from the tractor hydraulics
• Additional manual hand pump
• Vertical load on the hitch 100–350 kg

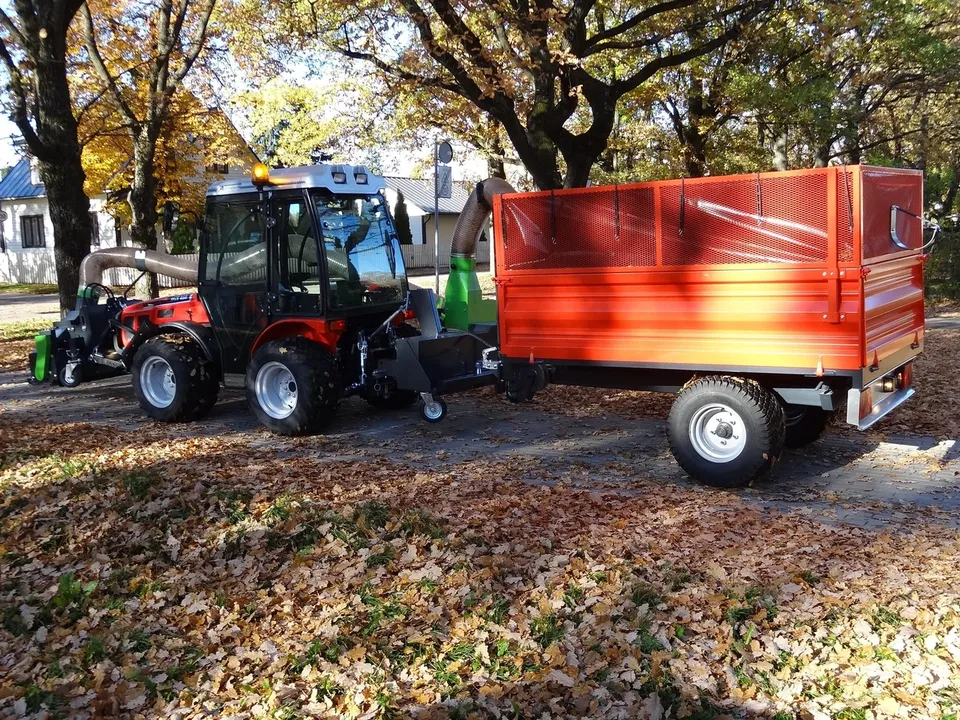

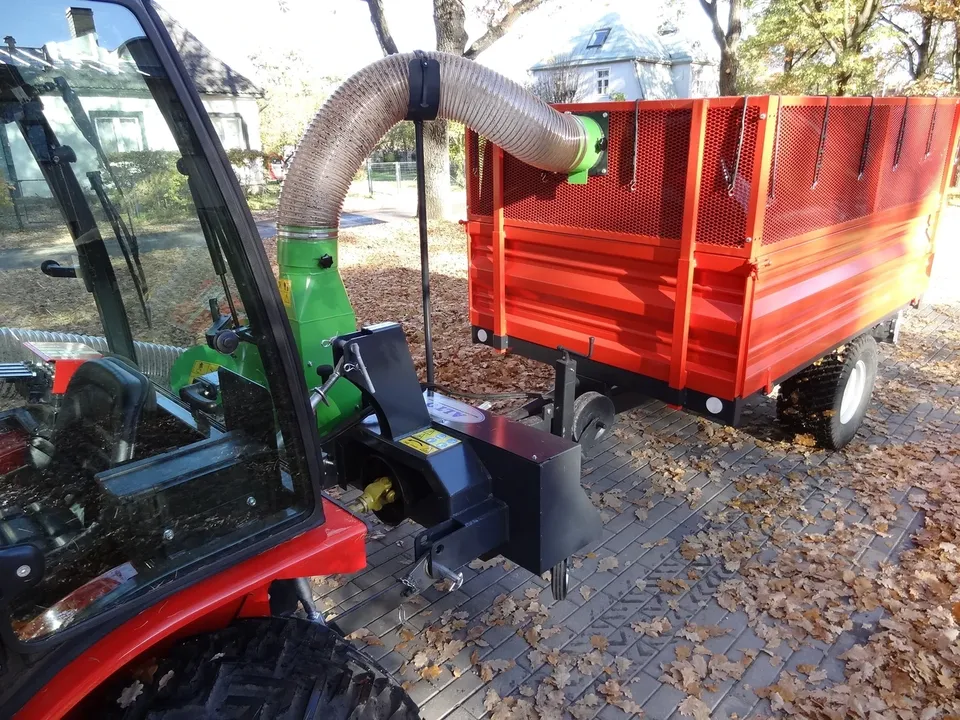

All of our leaf vacuum models can be installed on the trailer. The leaf vacuums are attached to the base plate with four bolts. The base plate is attached to the trailer drawbar with a bolted joint. By removing the cover and the elevations, the trailer can be used for other purposes.

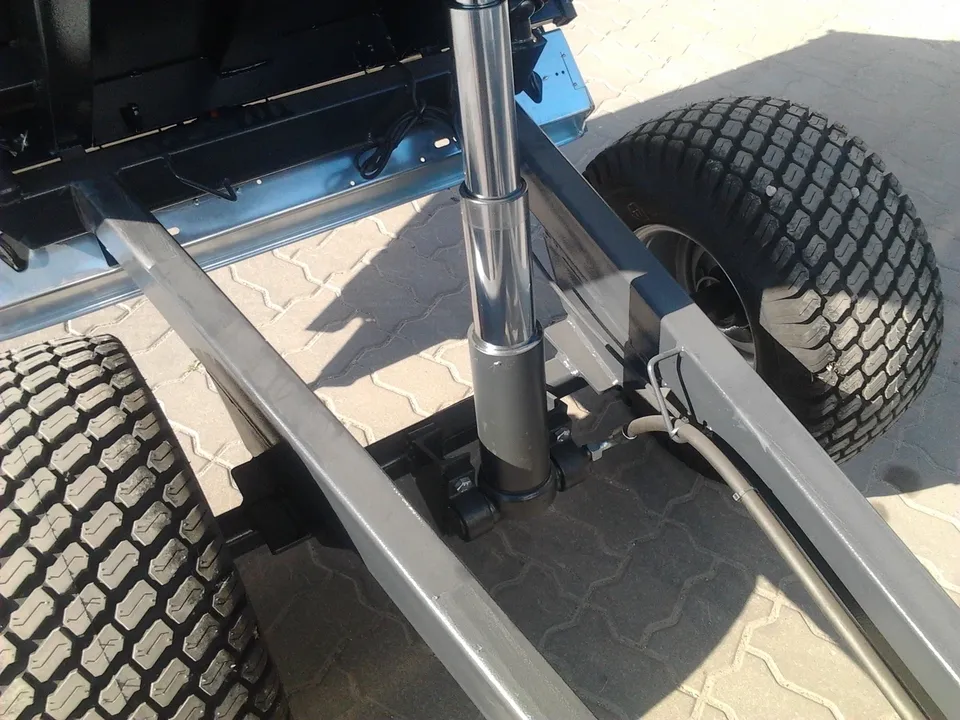

The trailer has a telescopic cylinder. The steel surfaces of the trailer are coated with powder paint, which is flexible and long-lasting.

A leaf vacuum may only be installed on the front of the trailer drawbar by our dealers with our permission. We have design protection that is valid in the European Union. You can find our dealers on our website.

Technical data

• Box internal dimensions: length 2200 mm, width 1400 mm, side height 400 mm
• Additional elevations 900 mm
• Box capacity 3.1 m³
• Gross weight 2000 kg
• Load capacity 1540 kg
• Loading height 710 mm

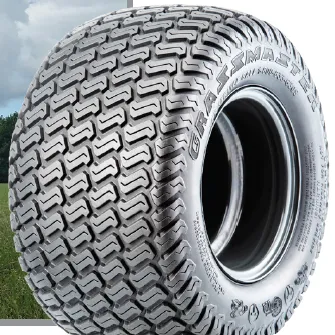

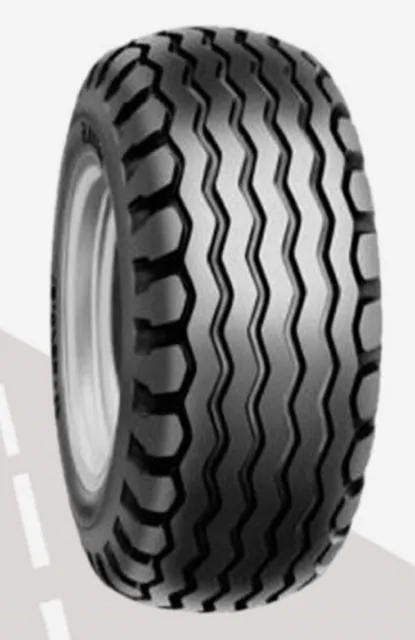

• Wheels 26x12.00x12 or 10.0/75-15.3
• Tipping: rear
• Tipping drive: tractor hydraulics and hand pump included in the set
• Drive connection: D-50 mm coupling head or other hitch eye as requested
• Drawbar length as required (leaf vacuum on the drawbar or tractor hitch)
