LEAF VACUUM tecnical data
Model ALTO | EP-520 |
Length | 728 mm |
Width without hose | 665 mm |
Height | 1038 mm |
Weight | 85 kg |
Turbine dimension | D-450 mm |
L-120 mm | |
Blades | 4 pc. |
Drive PTO | 540 p/min |
Capacity | 160 m3/min |
Hose dimension | 20 cm |
Hose length | 5,0m |

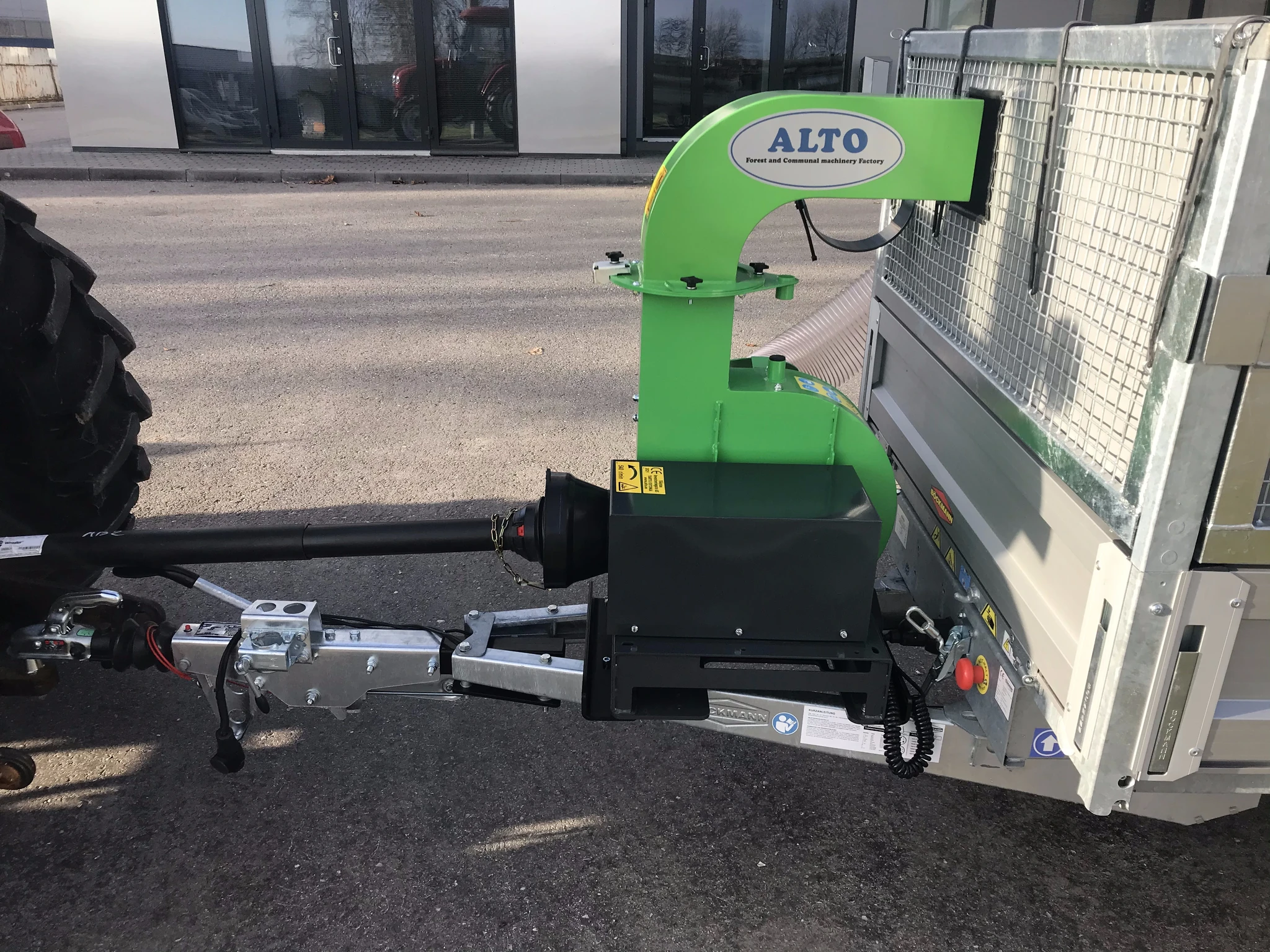

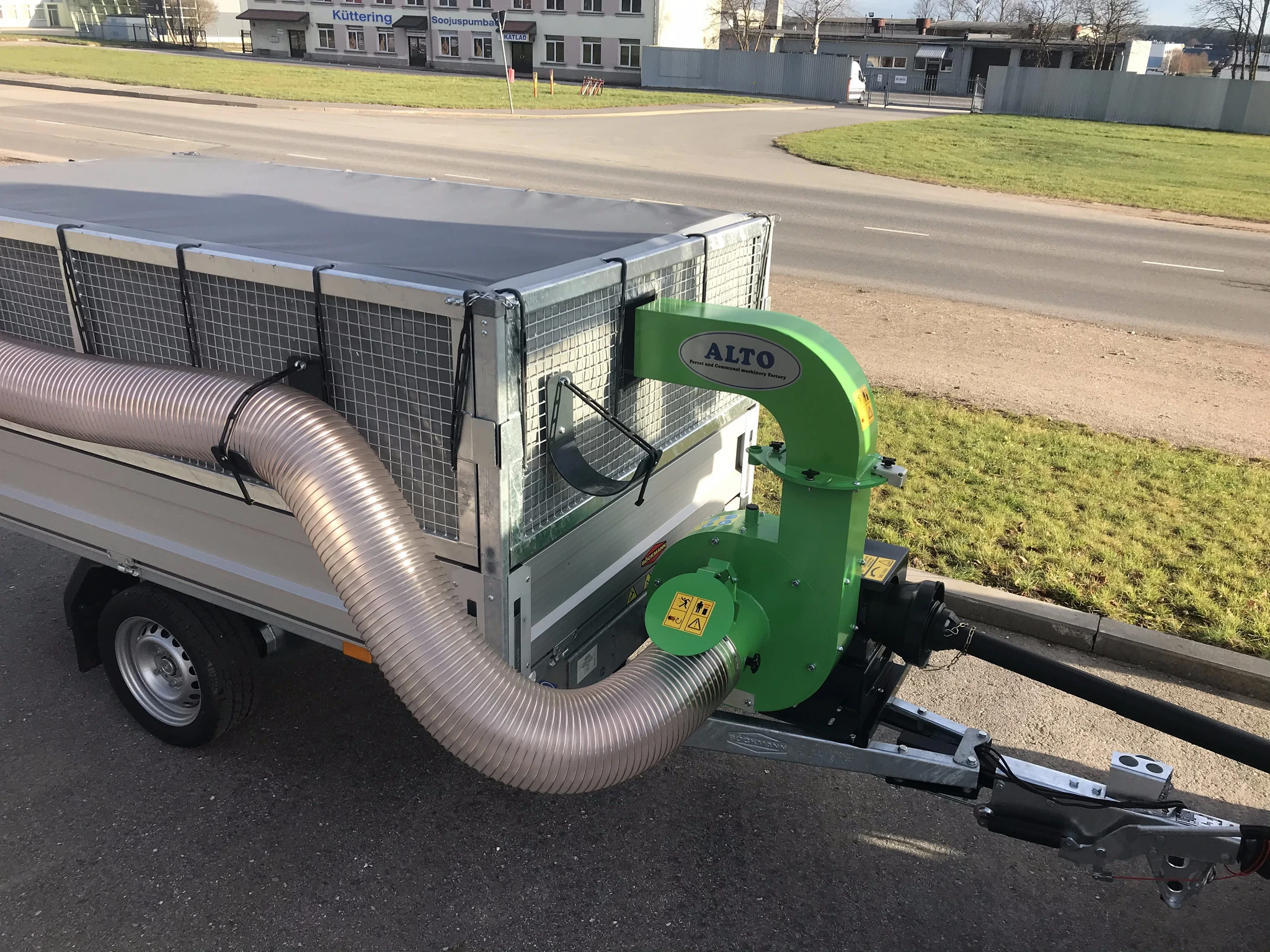

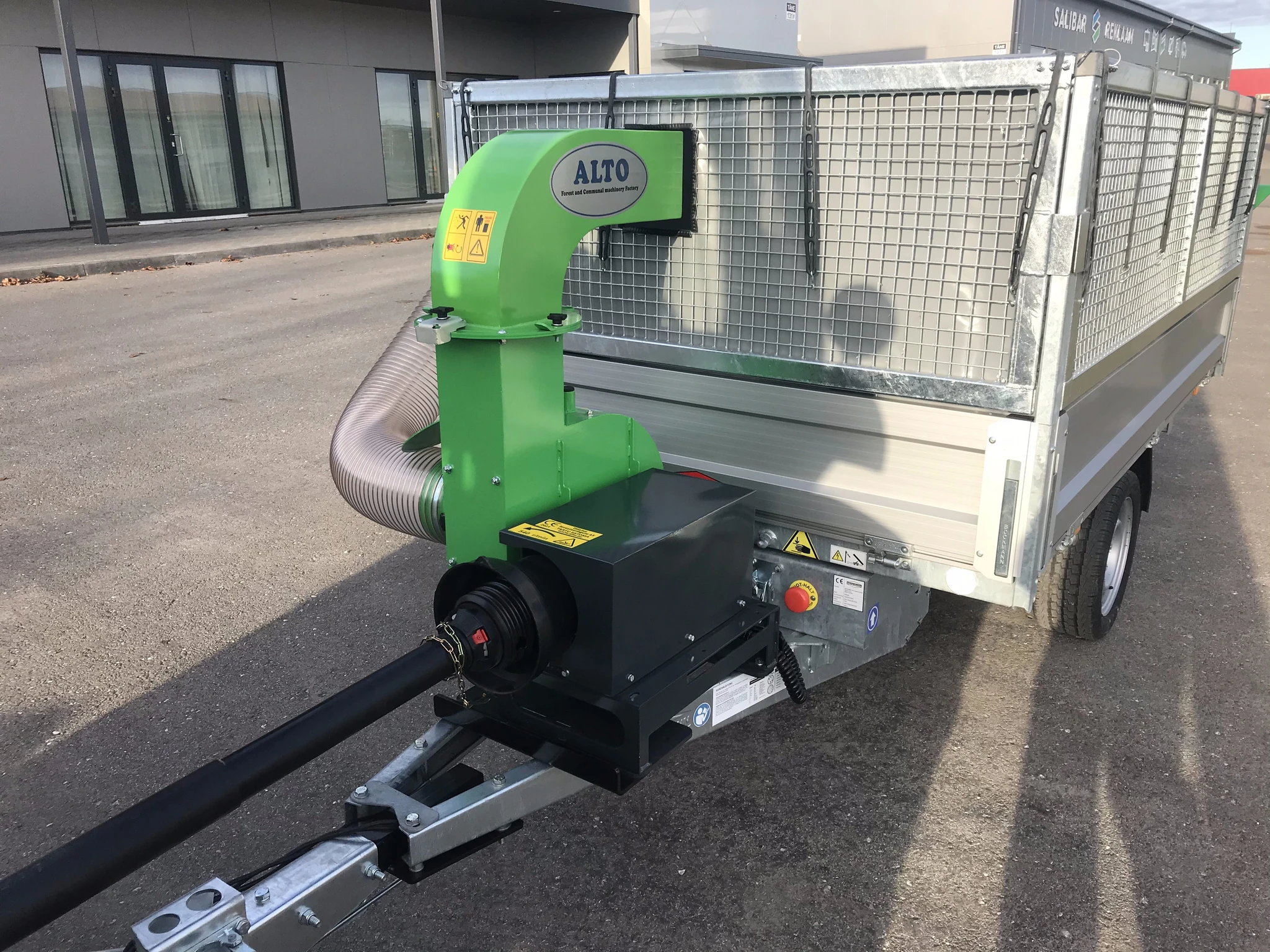

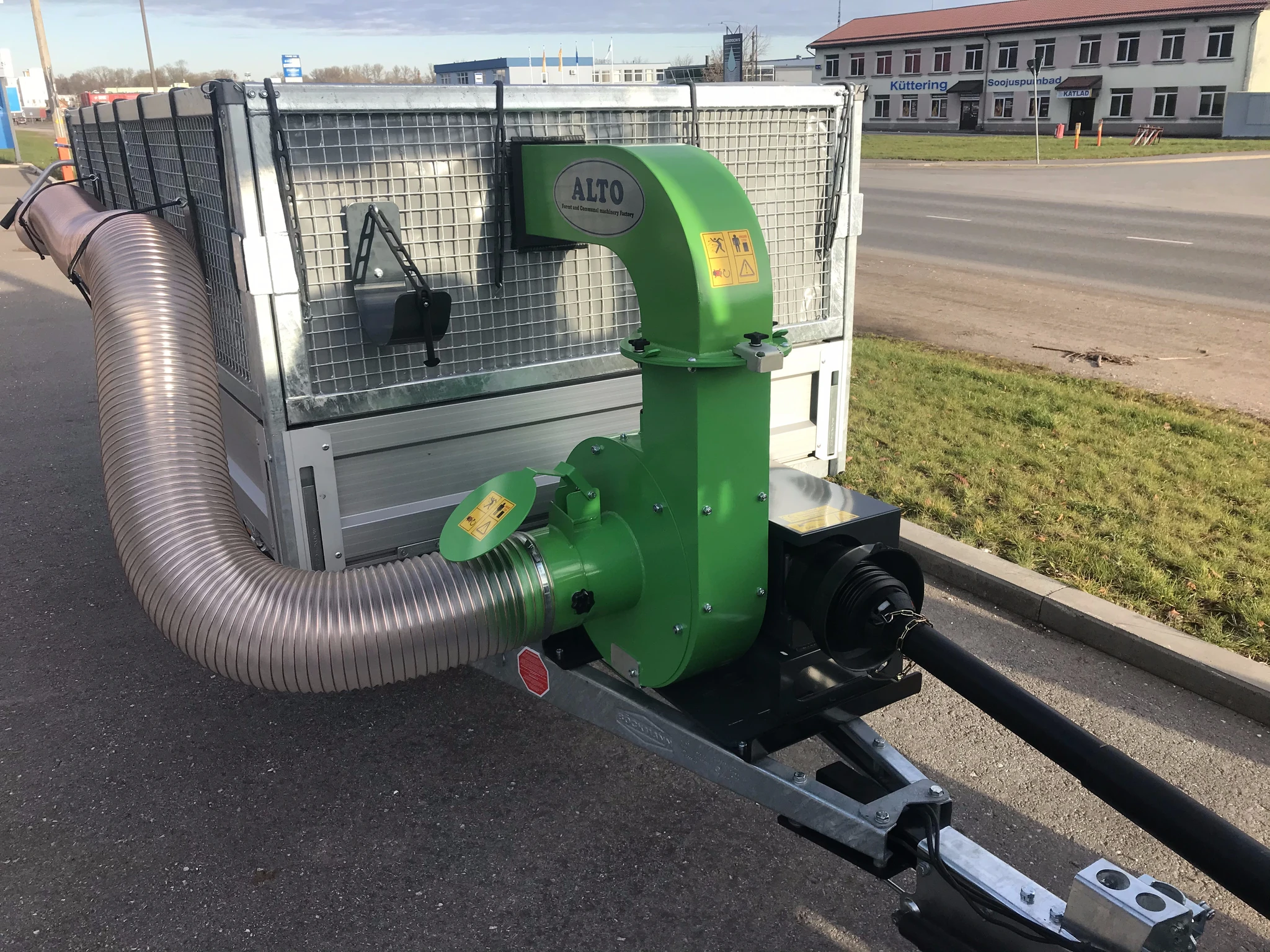

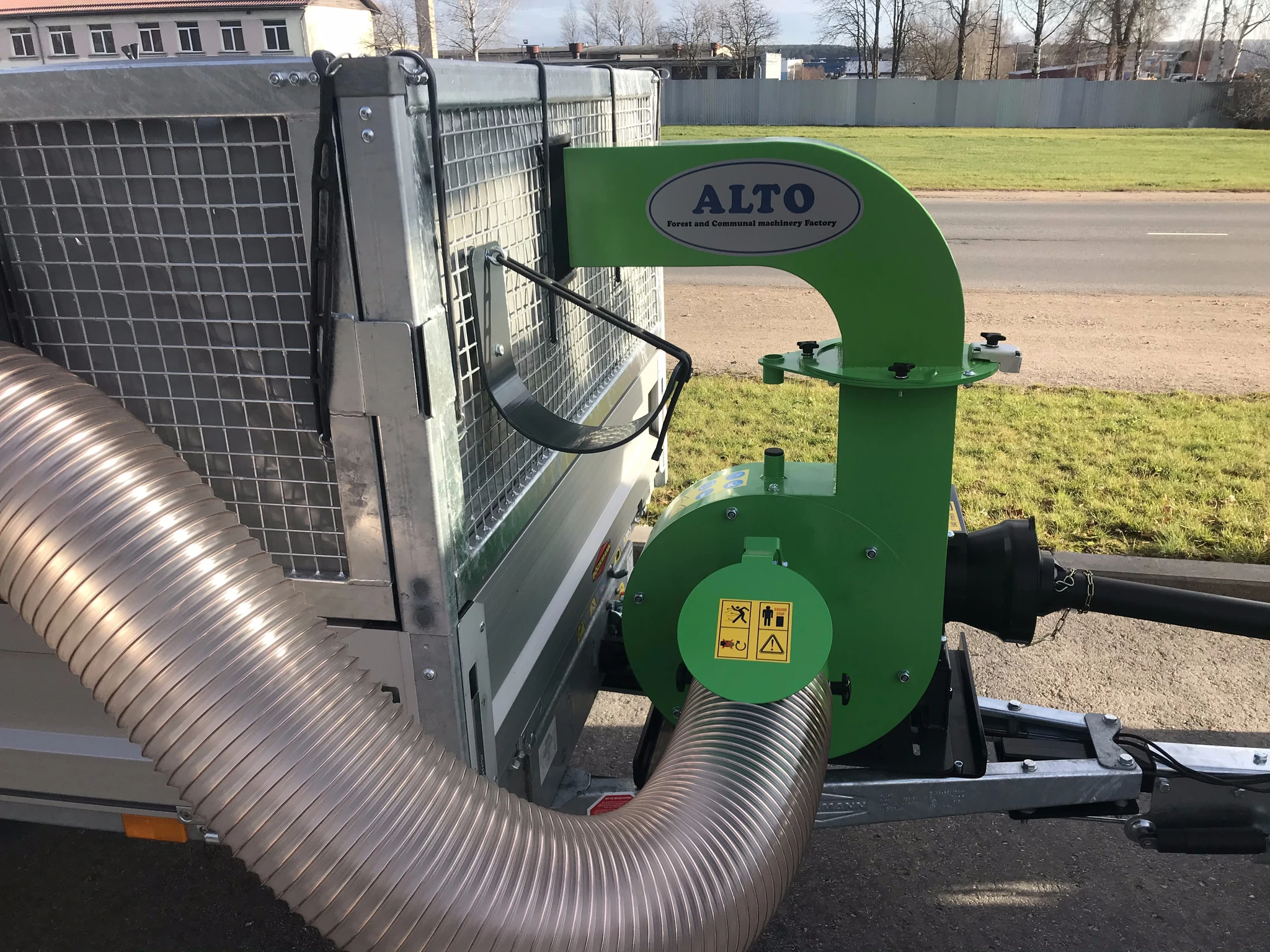

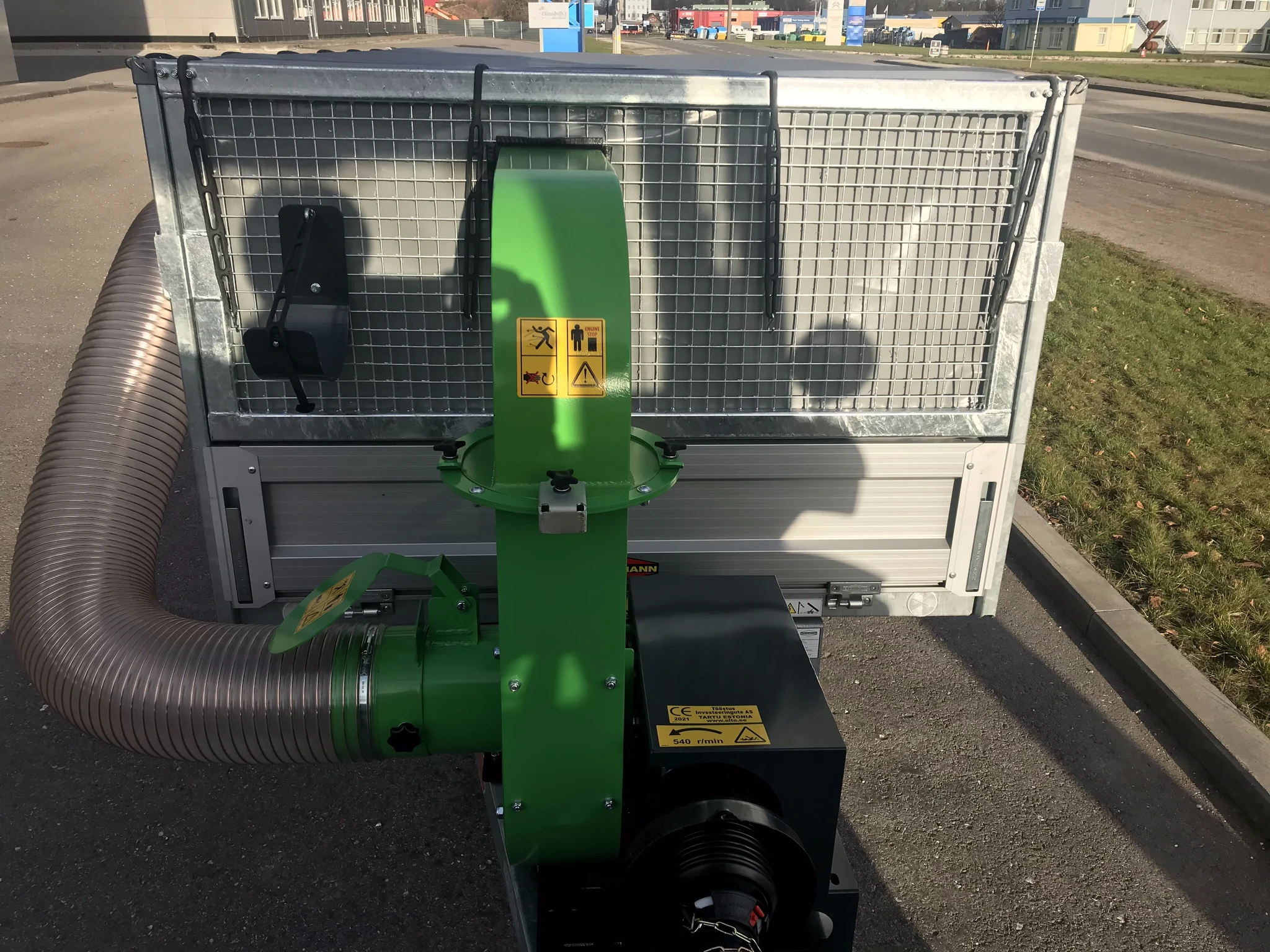

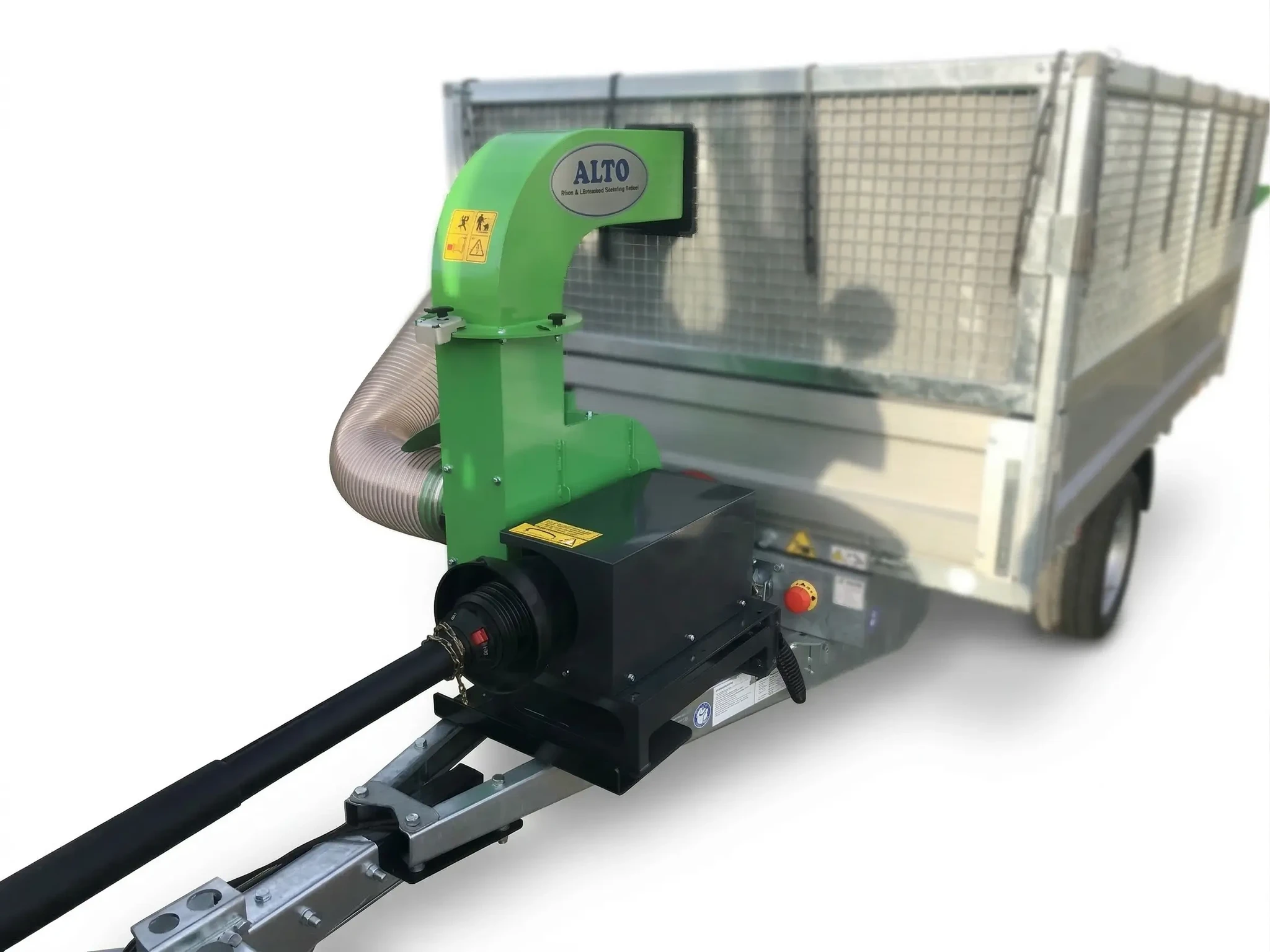

Leaf & Lawn vacuum ALTO EP - 520
Vacuum cleaner/shredder for municipal companies to clean parks, squares, roads from garbage, collect cut grass, tree leaves, thin branches, cones, acorns, plastic boxes, bottles, etc. into a trailer. The vacuum cleaner can be easily connected to the tractor's cutting deck, the suction nozzle with a brush or a hand nozzle. If you want to collect leaves from a swath or a pile, you can attach the necessary hand nozzle to the end of the suction pipe. The hand nozzle has two wheels on it, which makes handling easier.
Our leaf blower is easy to hook up to the back of the tractor because the leaf blower is attached to the trailer's diesel. The hand nozzle and hose are attached to the ports with carriers. The leaf blower is driven by a cardan transmission from the tractor's PTO shaft. A cardan equipped with a freewheel clutch must be used. In addition, a wide-angle cardan must be present.
To operate the vacuum cleaner, you can use a tractor with a PTO shaft rated power not exceeding 14 KW (18 hp). The PTO shaft speed must be 540 rpm.
Additional equipment
– Trailer with elevations.
– Suction nozzle/brush ALTO H - 120 which is attached to the front of the tractor and is operated hydraulically.
– Longer suction hose as needed.
– Additionally, hose carriers.
Why choose the ALTO EP - 520 Vacuum Cleaner
– You save time and money.
– Impact-resistant
– Turbine has a blade that can be replaced using a bolted connection.
– The rotor is made of Hardox 450 steel
– Extensive additional equipment
