Model ALTO | EP-530 HYDR. |
Length | 728 mm |
Width without hose | 665 mm |
Height | 1038 mm |
Weight | 85 kg |
Turbine dimension | D-450 mm |
L-120 mm | |
Blades | 4 pc. |
Drive | Tractor hydraulics |
Capacity | 180 m3/min |
Hose dimension | 20 cm |
Hose length | 5,0m |

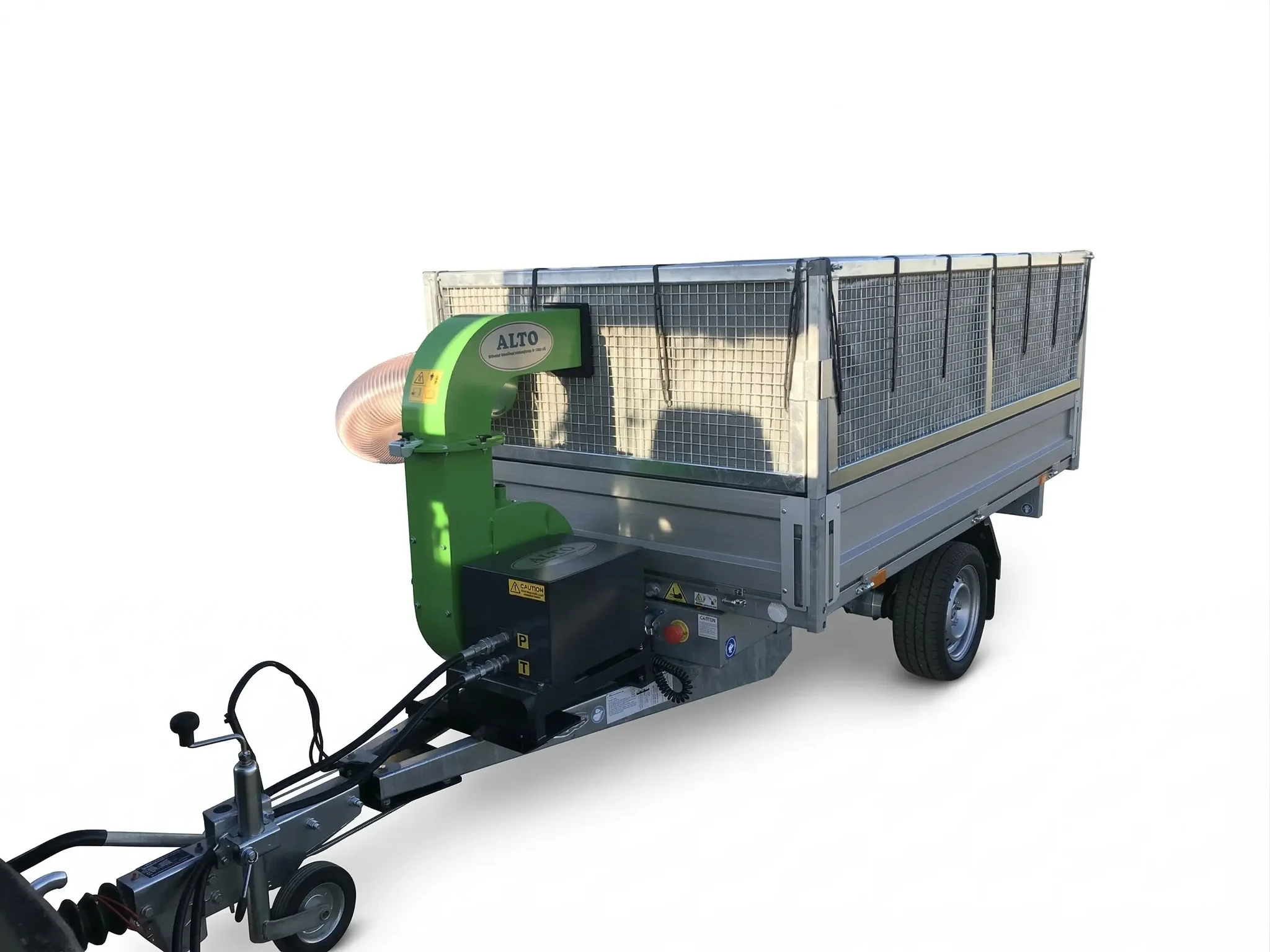

Leaf & Lawn vacuum ALTO EP - 530 HYDR.
Vacuum cleaner/shredder for municipal companies for cleaning parks, squares, roads from garbage, cut grass, fallen leaves, thin branches, cones, acorns, plastic boxes, bottles, etc. in a trailer. The vacuum cleaner can be easily connected to the tractor's cutting deck, suction nozzle with a brush or a hand nozzle. If you want to collect leaves from a swath or a pile, you can attach the necessary hand nozzle to the end of the suction pipe. The hand nozzle has two wheels on it, which makes handling easier.
Our leaf blower is easy to hook up to the back of the tractor because the leaf blower is attached to the trailer's diesel. The hand nozzle and hose are attached to the ports with brackets. The leaf blower is operated from the tractor's hydraulic system.
To operate the vacuum cleaner, you can use a tractor with a minimum hydraulic system capacity of 38 L/min. and a pressure of 180 bar. The oil tank capacity must be min. 40L. Necessary for oil cooling.
Additional equipment
– Trailer with elevations.
– Suction nozzle/brush ALTO H - 120 which is attached to the front of the tractor and is operated hydraulically.
– Longer suction hose as needed.
– In addition, hose carriers.
Why choose the ALTO EP - 530 Vacuum Cleaner
– You save time and money.
– Impact-resistant
– The turbine has a shaft inside that is replaceable using a bolted connection.
– The rotor is made of Hardox 450 steel
– Extensive additional equipment.
