Technical specifications
Model ALTO | HH-110 PMT | HH-110 ELT |
Lenght mm 4550 4550 | ||
Width (mm) | 1550 | 1550 |
Heigh (mm) | 1200 | 1200 |
Weight (kg) | 350 | 350 |
Hydraulics | ||
Oil (L) | 25 | 25 |
Output capacity (L/min) | 28 | 28 |
Max. log diameter (cm) | 40 | 40 |
Max log lenght (cm) | 110 | 110 |
Splitting blade 2/4 | X | X |
Maximum splitting power | 8T | 8T |
Hydraulically blade lever | X | X |
Power | ||
Electric motor 4kw (16A 380V) | - | X |
Petrol engine 13,5hp X - | ||
Optional equipment | ||
Hydraulic log lifter | L | L |
Splitting blade 2/6 L L |

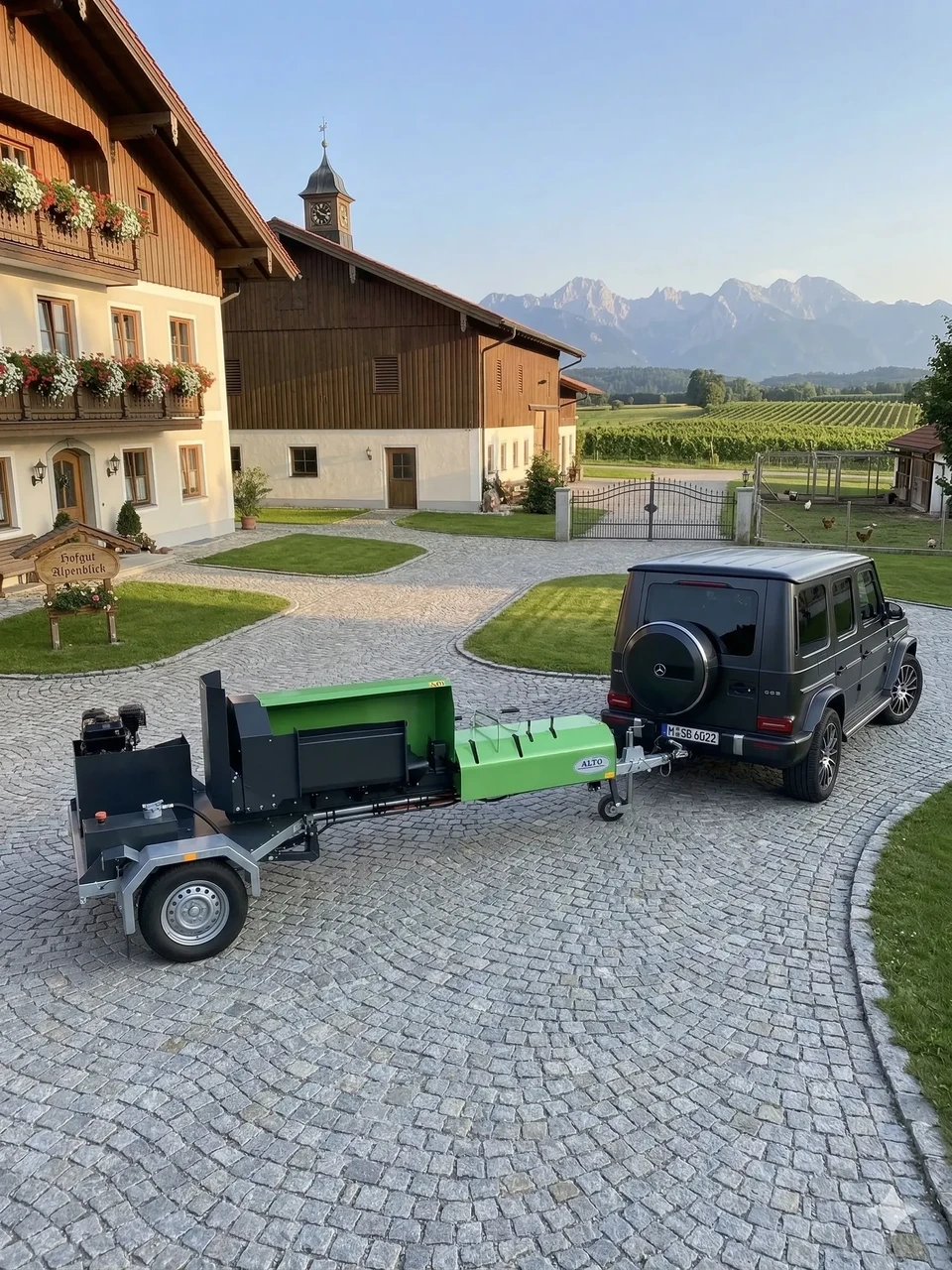

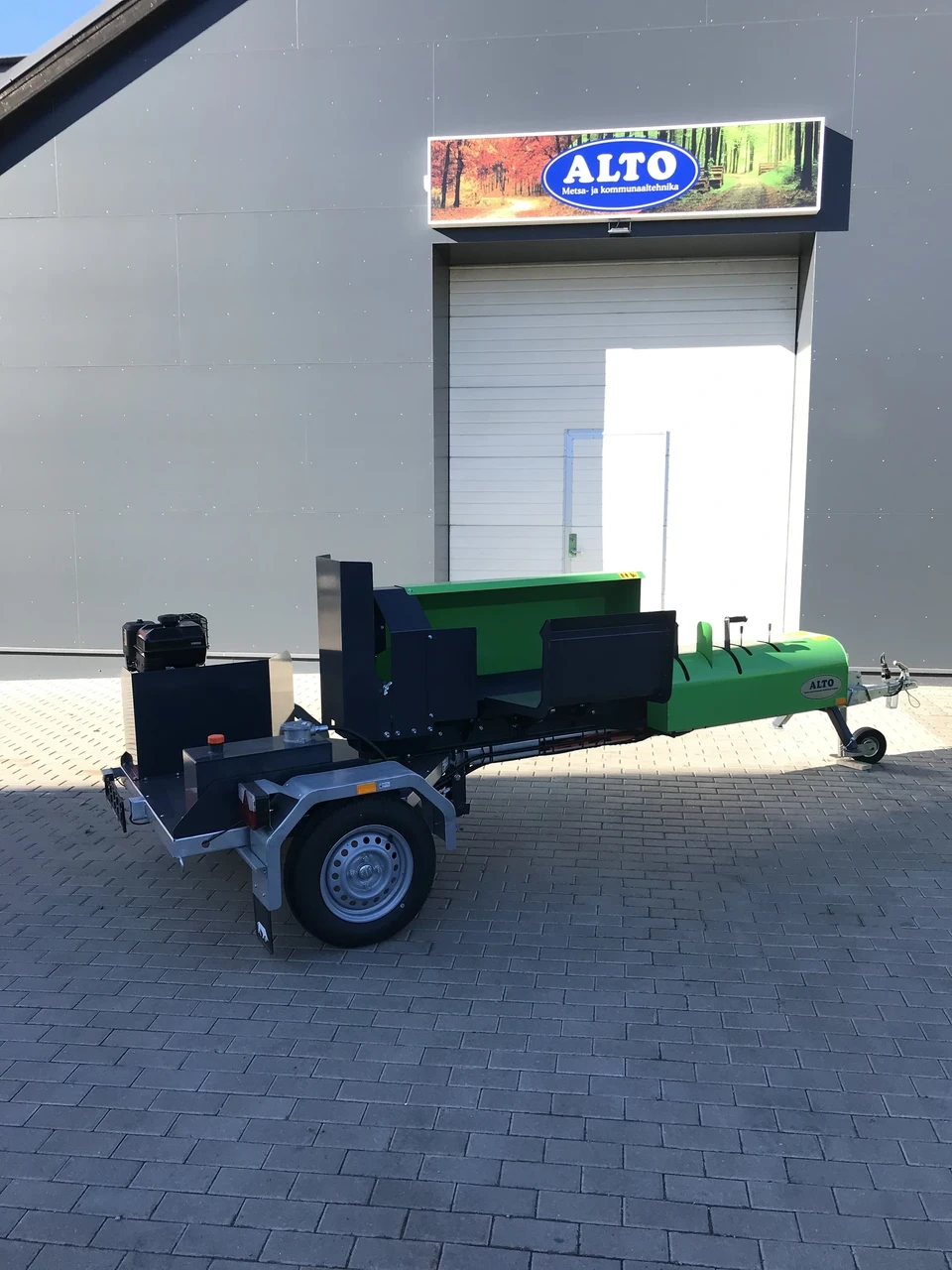

The ALTO HH-110 road model wood splitter
is a hydraulic log splitter for Nordic wood. The ALTO HH-110 is the right machine for making firewood quickly and easily! It is possible to install a pair of supports on the machine, which are located on both sides of the machine. The supports facilitate splitting large logs. The height of the splitting blade can be adjusted hydraulically. There are two different types of ALTO HH - 110 road models that we produce. 1. Gasoline engine + street-legal rear-wheel drive. 2. Electric engine + street-legal rear-wheel drive. The blade of the wood splitter is made of HARDOX steel and its height is adjustable. The powerful cylinder with a compression force of 8 tons ensures good productivity. Thanks to a special valve, the log pusher can be left standing and set in motion where it suits you. There is no need to spend time adjusting the machine if there are logs of different lengths. Two speeds can be used for splitting, depending on the log diameter.
We are the first in the Nordic countries to start producing hydraulic stacker and blade lifter as optional equipment.
